Key Features & Benefits: Upper Rollers for Excavators and Bulldozers
- Superior Material & Durability: Forged from high-strength 40Mn steel and subjected to precision heat treatment, these rollers deliver exceptional wear resistance. They are engineered to withstand severe operating environments, including demanding mining applications.
- Precision Compatibility: Designed with diverse specifications to precisely match mainstream equipment models, ensuring a perfect fit and straightforward installation.
- Optimized Undercarriage Stability: These rollers provide robust support to the track chain, effectively preventing sagging and misalignment. This reduces abrasion on internal components and extends the overall service life of the equipment.
- Advanced Sealing Technology: Featuring superior seal performance, the rollers are resistant to dust and water ingress, ensuring long-term reliability and lowering maintenance costs.
- Industrial-Grade Quality: Manufactured under strict quality control protocols to meet rigorous industrial standards, ensuring stable operation and maximizing job site productivity.
What is a Bulldozer or Excavator Upper Roller?

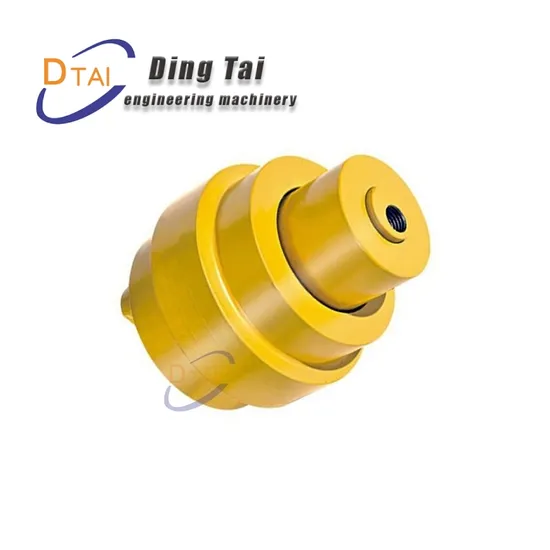

The Upper Roller (often referred to as a Top Roller) is a critical guiding component within the undercarriage of crawler bulldozers and excavators. Mounted on the upper section of the track frame, this cylindrical roller is typically forged from high-strength alloy steel. It undergoes specialized heat treatment to enhance wear resistance and features sealed bearings with a robust dust and water-proof design. Engineered to withstand harsh environments—such as mining sites or muddy terrain—the upper roller is essential for the smooth operation of the track system across all major construction machinery brands.
Primary Functions & Benefits
The upper roller’s core function is to support the weight of the track chain, preventing the assembly from sagging, misalignment, or derailment. This support ensures precise engagement between the track, the sprocket, and the idler. Furthermore, the upper roller reduces friction between the track and the frame while distributing load pressure during operation, thereby enhancing the overall stability of the undercarriage. High-quality upper rollers also minimize track vibration, optimizing travel smoothness and extending the service life of surrounding components—such as track links—which ultimately drives greater operational efficiency.
Upper Roller Specifications & Applications
| Equipment Type | Upper Roller Spec (Track Pitch) | Compatible Models | Applicable Scenarios |
|---|---|---|---|
| Bulldozer | 203mm | Small bulldozers and dozer-rakes/loaders with equivalent pitch | Light-duty operations requiring high mobility (e.g., urban road repair, small site leveling); suitable for steering in narrow spaces. |
| Bulldozer | 216mm | Medium Bulldozers | Medium-load operations (e.g., general earthwork, farmland renovation, factory site clearing); balances flexibility and stability. |
| Bulldozer | 228.6mm | Large Bulldozers | Heavy-duty operations (e.g., mine stripping, open-pit earthmoving, large infrastructure projects); ensures stability in harsh conditions via large support area. |
| Excavator | 171.45mm | 4 - 5.5t Small Excavators | Precision work (e.g., urban pipe laying, landscaping/digging, indoor demolition); suits flexible needs of small equipment. |
| Excavator | 190mm | 20 - 24t Medium Excavators | Routine operations (e.g., general earthwork in construction, building foundation excavation, roadbed trimming). |
| Excavator | 202.8mm / 215.9mm | 25 - 33t Medium-Large Excavators | Medium-heavy duty scenarios (e.g., highway construction, bridge foundation work, industrial park site development). |
| Excavator | 228.6mm / 260.35mm | Large Excavators (Over 35t) | High-intensity, harsh conditions (e.g., mining, large open-pit excavation, port earthwork transfer); withstands impact and heavy loads in complex terrain. |
Mini Excavator Upper Roller Replacement Guide
1. Safety Preparation
Shut down the engine, remove the ignition key, and relieve system hydraulic pressure. Elevate the track on the side requiring service using a jack or the machine’s blade/outriggers until the upper roller hangs freely. Always place stable supports, such as jack stands or heavy-duty blocking, under the undercarriage to prevent accidental drops.
2. Removal of Worn Components
Clear away all mud and debris surrounding the upper roller assembly. Unfasten and remove the mounting bolts and nuts securing the roller shaft using the appropriate wrench. Extract the old upper roller from the track frame. Simultaneously, inspect the mounting bracket and bushings for any signs of deformation or excessive wear.
3. Cleaning and Inspection
Thoroughly remove oil, grease, and rust from the mounting surface to ensure a clean mating area. Inspect the new upper roller to ensure the bearings and seals are intact. Rotate the roller by hand to verify smooth operation and confirm that the part specifications match your specific equipment model.
4. Installation
Position the new upper roller into the mounting bracket, carefully aligning it with the bolt holes. Insert the mounting bolts and tighten them in a diagonal or crisscross pattern to ensure even pressure distribution. Always apply the correct torque according to the equipment service manual.
5. Operational Verification
Remove the safety supports and lower the track until the chain engages with the upper roller. Start the machine and run the track at idle speed. Observe the roller for smooth rotation and listen for any abnormal noises. Once you confirm there is no looseness or misalignment, the excavator is ready for operation.
Excavator & Bulldozer Upper Roller Customization Process
- Requirements Consultation: Provide your equipment model, track pitch, track link count, and specific operating conditions (e.g., general construction or heavy-duty mining). Please specify any unique requirements, such as upgraded wear resistance or anti-corrosion treatments.
- Engineering Proposal: We select the optimal materials—such as high-strength Alloy Steel or wear-resistant compounds—and define technical parameters based on your needs. A detailed customization plan and quotation are submitted for your approval before contract execution.
- Precision Manufacturing: Production adheres to strict industry standards. We rigorously control every stage, including forging, heat treatment, and assembly, while providing progress updates on critical processes.
- Quality Assurance & Logistics: Finished upper rollers undergo multi-stage inspections for dimensional accuracy and wear performance. Qualified components are vacuum-sealed for protection and shipped via expedited logistics with accompanying installation guides.
- After-Sales Support: We provide comprehensive technical assistance throughout the warranty period. Our team is available to resolve any fitment or compatibility inquiries immediately.
Dedicated Project Management: A dedicated technical consultant oversees the entire lifecycle to ensure short lead times and precise compatibility, maximizing the uptime and efficiency of your fleet.
After-Sales Service & Support Process
- 24-Hour Response Commitment: Should you encounter any technical issues or quality concerns during operation, please contact our support team immediately. We guarantee a response within 24 hours to provide rapid, professional assistance.
- Diagnostic & Repair Support: Upon receiving your report, we provide remote guidance for initial troubleshooting. Based on the specific diagnosis, we will coordinate on-site engineering support or develop a tailored repair strategy to resolve the issue swiftly.
- Inventory & Availability: We maintain a robust inventory of critical components to ensure the timely supply of spare parts, significantly minimizing equipment downtime and maintaining operational continuity.
- Warranty & Quality Assurance: For products exhibiting quality defects, we provide complimentary repair or replacement in accordance with contract terms. We assume full responsibility for maintenance services during the warranty period to safeguard your investment.
- Proactive Lifecycle Management: Our after-sales team conducts regular follow-ups to monitor equipment performance and provide expert maintenance recommendations, assisting you in extending service life and optimizing operational efficiency.
Why Choose Us
Partner with us for professional, reliable, and cost-effective aftermarket solutions for your heavy machinery. As a dedicated Manufacturer and Supplier, we operate our own production facility with years of specialized R&D experience, focusing specifically on high-performance Upper Rollers and undercarriage components for excavators and bulldozers.
The [Company Name] Advantage:
- Manufacturing Excellence: We enforce rigorous quality control protocols to ensure every component delivers exceptional durability and wear resistance under heavy loads.
- Extensive Compatibility: Our comprehensive inventory supports a wide range of mainstream equipment models to meet diverse job site requirements.
- Precision Customization: We offer tailored manufacturing capabilities, engineering components to meet your specific operational environments and performance standards.
- Maximizing Uptime: Our commitment extends beyond the sale. We provide a responsive after-sales system and expert technical support to minimize downtime and ensure your fleet operates at peak efficiency.
- Seamless Global Procurement: With extensive export experience, we navigate international trade logistics efficiently to ensure a smooth purchasing process.
Choose us for proven quality and professional assurance. We look forward to powering the success of your projects.
