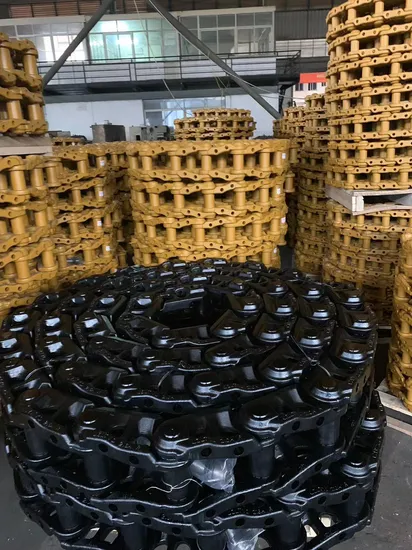

Track Chain Features & Advantages
- High-Strength Metallurgy: Engineered from premium high-manganese and boron steel, delivering a tensile strength ≥ 1000 MPa.
- Advanced Heat Treatment: Utilizes a "through-hardening and tempering + induction hardening" process to achieve a surface hardness of HRC 45–55. This ensures a tough core with a hardened exterior for superior resistance to wear and fracture.
- Precision & Stability: Pitch tolerance is strictly controlled within ± 0.5mm. The design features a self-cleaning structure to prevent mud packing, ensuring seamless sprocket engagement and smooth travel system operation.
- Cost-Efficiency & Longevity: Critical wear surfaces undergo reinforcement treatment, extending service life by 20%–50% compared to industry averages and reducing comprehensive operating costs by over 30%.
- Versatile Application: Designed for easy installation and extreme durability, these chains are optimized for harsh operating environments, including mining sites and swamps.
What is an Excavator Track Chain?
The Track Chain (or Track Group) serves as the structural backbone of the undercarriage for excavators and bulldozers. It performs the critical function of supporting the machine's entire weight while transmitting power from the travel motor to the ground, serving as the foundation for stable operation across complex terrains, including mining sites, forestry operations, and construction zones.
Key Functions and Engineering Features:
- Heavy-Duty Construction: Manufactured from high-strength forged steel and subjected to rigorous heat treatment, the chain balances extreme wear resistance with impact toughness. This ensures reliable performance even under high-load conditions.
- Precision Assembly: Each chain segment is a precision assembly of track links, pins, and bushings. Tight tolerances minimize the risk of de-tracking while reducing operational noise and vibration for smoother handling.
- Sealed & Lubricated Design: Modern track chains typically feature a Sealed and Lubricated (SALT) design. This effectively prevents the intrusion of abrasive contaminants like mud and sand, significantly reducing internal wear and extending the service life of the component.
- System Longevity: Beyond providing essential traction, a high-quality track chain protects the integrity of the entire undercarriage system. By reducing friction and ensuring proper alignment, it prolongs the life of mating components like sprockets and idlers.
- Compatibility: Designed for versatility, these components offer broad compatibility with most major heavy equipment makes and models, with custom solutions available for specialized operational requirements.
Track Chain Specifications & Applications
1. Track Chain Specifications & Applications
| Pitch | Applicable Models | Working Conditions |
|---|---|---|
| 150-171mm | 1-10 Ton Excavators/Bulldozers (e.g., Komatsu PC60, Sany SY75, XCMG XE60) | Municipal construction, farmland water conservancy, small earthwork excavation, indoor demolition (Light duty, flat terrain, low load). |
| 190-216mm | 10-30 Ton Excavators/Bulldozers (e.g., CAT 320, Komatsu PC200, Hitachi ZX200, Doosan DX220) | General duty (earthwork, building construction, road building), light mixed rock duty. Suitable for most regular operation scenarios. |
| 230-250mm | 30-50 Ton Excavators/Bulldozers (e.g., CAT 336, Komatsu PC360, Sany SY485) | Heavy duty (mine stripping, quarry operations, hard rock excavation). Complex terrain with frequent impact and friction. |
| 270-317.5mm | 50+ Ton Mining Excavators (e.g., CAT 374, Komatsu PC700, XCMG XE700D) | Extreme heavy duty (large mines, open-pit mines, high-strength rock crushing). Withstands huge torque and impact. |
2. Track Chain Types (Structure)
| Type | Features & Applications |
|---|---|
| Sealed and Lubricated Track (SALT) | Dusty, muddy, or impurity-rich conditions (mines, swamps, farmland). Isolates impurities, reduces internal wear, extends service life. Suitable for long-term continuous operation. |
| Dry Chain (Standard) | Dry hard soil, short-term rental equipment, or temporary emergency repairs. Low maintenance cost but shorter lifespan. Not suitable for environments with many impurities. |
3. Width Specifications
| Category | Characteristics & Scenarios |
|---|---|
| Wide Link/Shoe (300mm+) | Soft ground (swamps, sand, farmland). Low ground pressure prevents equipment sinking. Also used in municipal road construction to reduce damage to the road surface. |
| Narrow Link/Shoe (180-220mm) | Narrow space operations (indoor, tunnels), mountainous terrain. Provides concentrated traction and high flexibility. |
Maintenance & Replacement Guide: Excavator and Bulldozer Track Chains
1. Troubleshooting & Repairing Common Failures
Track Link Deformation or Cracking
- Symptoms: Visible bending of the track link, hairline cracks along the edges, or binding during sprocket engagement.
- Repair Procedure:
- Elevate the machine using a hydraulic jack and secure it. Remove the track shoe bolts to separate the track chain.
- Replace the damaged link with a new component that matches the original pitch and bore diameter. Ensure the material metallurgy (e.g., 35MnB, 42CrMo) matches the OEM specification.
- Reassemble and tighten connecting bolts using a torque wrench to ensure a flush fit with zero gap between mating surfaces.
Pin & Bushing Wear (Pitch Extension)
- Symptoms: The track pitch becomes elongated ("stretched" track), causing audible clunking and poor engagement with the sprocket (skipping teeth).
- Repair Procedure:
- Disassemble the track chain. Use a portable track pin press to remove the worn pins and bushings. Note: Never use sledgehammers or violent force, as this can deform the track link bores.
- Install replacement alloy steel pins and bushings (carburized or induction hardened). Ensure the interference fit clearance is ≤ 0.5mm.
- Apply assembly grease to the pin surface. For Sealed and Lubricated (SALT) chains, replace the seals simultaneously to prevent lubricant loss.
Seal Failure (SALT Chains Only)
- Symptoms: Grease leakage, visible drying around joints, or rapid internal wear due to dirt ingress.
- Repair Procedure:
- Separate the track link from the pin and bushing. Thoroughly clean out old grease and contaminants.
- Install new oil-resistant rubber seals compatible with the lubricant type.
- Inject the specified volume of specialized track grease until a slight amount purges from the seal edge, then reassemble.
Track Chain Breakage (Emergency Protocol)
- Symptoms: Complete separation of the chain; machine immobilization.
- Emergency Repair:
- Secure the broken chain ends with a hoist. Clean the fracture site and inspect the integrity of adjacent links.
- Pin Failure: Replace with a new pin and secure.
- Link Failure: Install a temporary "Master Link" or repair link to allow the machine to travel at low speed to a maintenance area.
- Long-term Solution: Replace the affected track link assembly or the entire chain to prevent catastrophic failure under load.
2.Step-by-Step Replacement Procedure
Phase 1: Preparation
- Tools & Parts: Verify the new track chain matches the machine tonnage, pitch, and link count. Prepare Grade 10.9 or 12.9 track shoe bolts, hardened washers, and lock nuts. Required tools include a hydraulic jack (capacity ≥ 1.5x machine weight), track pin press, torque wrench, hoist, safety stands/cribbing, wire brushes, and penetrating oil.
- Site Setup: Park on flat, hard ground. Shut down the engine and release hydraulic pressure. Clean all debris from the undercarriage, sprocket, idler, and carrier rollers. Inspect the track adjuster and grease valves for damage.
Phase 2: Removal of the Old Chain
- Release Tension: Locate the relief valve on the track adjuster (usually near the idler). Loosen the valve to release grease pressure, allowing the idler to retract. If the idler is stuck, gently operate the machine to assist retraction.
- Elevate the Machine: Jack up the undercarriage frame so the track is 5–10cm off the ground. Critical Safety Step: Always place safety blocks or cribbing under the frame; never rely solely on the jack.
- Break the Chain: Rotate the track to position the master pin (or master link) effectively. Use a pin press to remove the master pin.
- Remove: Slowly drive the machine or use a hoist to peel the old chain off the sprocket, carrier rollers, and idlers.
- Component Check: Clean and inspect the wear surfaces of the sprocket teeth, idlers, and rollers. Installing a new chain on worn mating components will significantly reduce the new chain's lifespan.
Phase 3: Installation of the New Chain
- Positioning: Hoist the new track chain and feed it under the undercarriage in the correct direction of travel (Sprocket → Carrier Roller → Track Roller → Idler). Ensure correct alignment with the sprocket teeth.
- Closing the Loop: Pull the chain ends together. Align the bores of the mating track links. Insert the master pin using the press, ensuring it is centered (protrusion difference ≤ 1mm). Install locking devices (cotter pins/plugs). For SALT chains, ensure seals are not pinched.
- Installing Track Shoes: If the chain is bare, position track shoes (grouser bars facing the correct direction). Insert bolts with washers. Pre-tighten to 50% torque using a diagonal "star" pattern, then torque to full specification (e.g., 150–220 N·m depending on bolt size).
- Tensioning: Tighten the track adjuster relief valve. Inject grease into the cylinder to push the idler forward. Correct tension is achieved when track sag (measured between the carrier roller and idler) is typically 20–30mm.
Phase 4: Testing & Run-In
- No-Load Test: Lift the track and run it at idle speed (forward and reverse) for 15 meters. Listen for binding or popping noises. Check tracking alignment on the rollers and sprocket.
- Re-Torque: After testing, check the master pin/link and re-torque track shoe bolts if necessary. Check for grease leaks on SALT chains.
- Break-In Period: Operate the machine under light loads (light dozing or travel) for 2–4 hours. Avoid high-speed turns or aggressive starts to allow the new components to seat properly without deformation.
Customization Process: Excavator & Bulldozer Track Chains
Our custom engineering process is designed to deliver track chains that are precisely tailored to your machine's operational environment, ensuring optimal performance and reduced downtime.
1. Requirement Specification & Analysis
Simply provide the core technical details:
- Machine Data: Make and model of the excavator or bulldozer.
- Operational Context: Specific site conditions (e.g., high-impact mining, abrasive quarrying, or soft-soil swamp applications).
- Dimensional Constraints: Required pitch, number of track links, or specifications of the existing assembly.
2. Application-Specific Engineering
Based on your input, our engineering team designs the optimal configuration:
- Material Selection: We select high-strength alloy steels and define specific heat treatment profiles (e.g., induction hardening depth) to match your load profile.
- Internal Structure: The Sealed and Lubricated (SALT) system is customized to balance seal integrity with lubrication flow, ensuring the chain withstands specific impact and abrasion levels.
3. Precision Manufacturing & Fitment
Production is executed with strict dimensional controls. We ensure the track chain geometry and pitch align perfectly with your existing sprockets and track rollers. This precise matching is critical to preventing mechanical binding, premature wear, and de-tracking risks.
4. Quality Assurance & Support
Every custom chain undergoes rigorous metallurgical and dimensional inspection prior to shipment. We provide logistical support and technical installation guidance to ensure seamless integration with your undercarriage system. The Result: A bespoke mobility solution that not only fits your machine perfectly but is engineered to lower maintenance costs and extend service life in your specific working conditions.
After-Sales Service & Support Protocol
- Rapid Response Guarantee: Should you encounter any technical challenges or performance inquiries, our dedicated support team is available immediately. We guarantee a response time within 24 hours to provide professional technical assistance.
- Diagnostic & Resolution Process: Upon notification, we initiate remote diagnostics to guide preliminary troubleshooting. Depending on the specific issue, we will either deploy on-site engineering support or deliver detailed repair protocols to ensure the fastest possible resolution.
- Parts Availability & Logistics: We maintain a comprehensive inventory of critical spare parts to ensure immediate availability. This supply chain efficiency is designed to minimize equipment downtime and keep your operations running.
- Warranty & Quality Assurance: We stand firmly behind our products. In the event of manufacturing defects, we provide free repair or replacement services strictly in accordance with our warranty agreement, fully protecting your investment during the coverage period.
- Proactive Lifecycle Management: Our after-sales team conducts periodic performance follow-ups to monitor component condition. We provide expert maintenance recommendations to help you extend the service life of your undercarriage systems and optimize overall operational efficiency.
Why Choose Us?
As a dedicated manufacturer and supplier of excavator and bulldozer undercarriage parts, we deliver professional, high-value solutions rooted in engineering excellence. With years of specialized R&D and production experience, we strictly control every aspect of quality—from metallurgy to heat treatment—ensuring that every track chain and component offers superior durability and performance.
Our Core Advantages:
- Engineering & Customization: Our portfolio covers a vast range of mainstream makes and models. Beyond standard replacements, we offer comprehensive customization capabilities to engineer products that precisely match your specific operational environments and performance standards.
- Global Footprint: Our products are trusted in demanding projects worldwide. From high-rise construction in American metropolises and urban development in the UK and France to expansive agricultural and mining operations in Australia, our track shoes and track chains are the foundation of successful machinery operations globally.
- Inventory & Rapid Fulfillment: Our extensive warehousing facilities maintain a massive, organized inventory of excavator parts and bulldozer parts. This "ready-to-ship" strategy ensures immediate availability, eliminating supply delays and keeping your project timelines on track.
- Comprehensive Support & Logistics: We provide a robust after-sales support system designed to minimize downtime. backed by extensive experience in international trade, we ensure a seamless procurement process—from order placement to delivery—handling all logistics to provide a hassle-free experience.
Choose us for peace of mind, proven quality, and professional protection for your equipment investment. We look forward to powering the success of your next project.
